Piezo Driving Unit DU001
Principle of operation
Attotech's Piezo Drive Unit, DU001, amplifies a low voltage trigger and controls the Amplitude of the amplified high voltage signal. DU001 is designed to drive our pulsed valves GR001 and GR020, in the voltage range 0V to -500V with a peak power of 550W.
![[picture of the amplifying unit).]](2013-03-12/DU001_full.png "Click for larger picture, DU001")

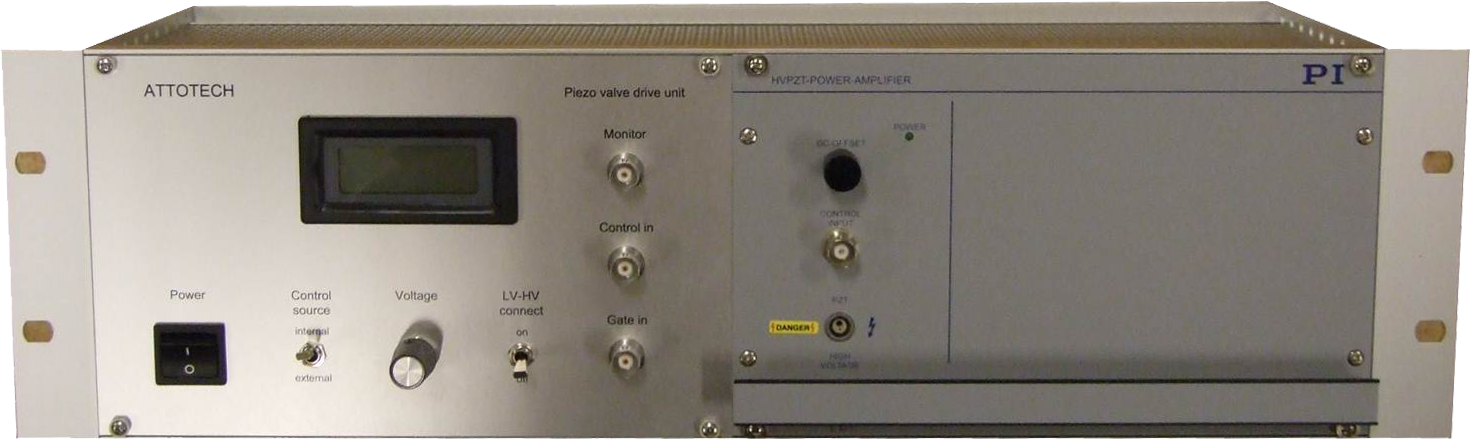

The piezo driving unit, DU001
Data sheets
Download datasheet for DU001 (pdf format)Mirror: Download datasheet for DU001 (external link, physikinstrumente.com )
